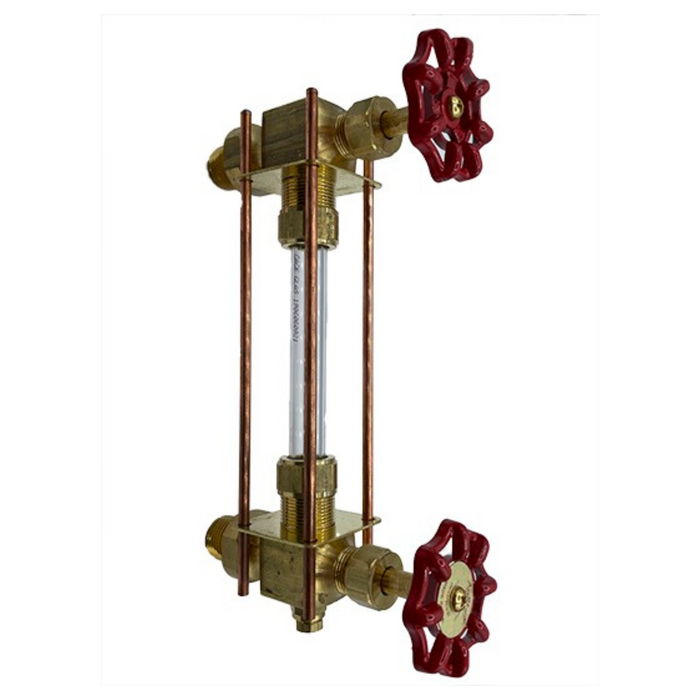

Conbraco 20-350 Square Bronze Water Gauges
Original price
$228.44
-
Original price
$345.54
Original price
$228.44
$228.44
-
$345.54
Current price
$228.44
- Automatic Ball Checks: Standard on both series to prevent fluid loss if the glass breaks, enhancing safety.
-
Pressure and Temperature Ratings:
- Rated for 200 psig at 400F - Rated for 400 psig at 100F
-
Standard Components:
- 1/2" or 3/4" NPT male pipe connections
- 1/4" needle drain valve in the lower body
- Options for pet cock or Apollo ball valve drain
-
Installation:
- Requires four guard rods for secure installation (sold separately).
- EPDM gauge glass gaskets are standard, with other gasket materials available upon request.
- TFE reinforced stem packing
-
Glass and Rod Length Calculation:
- Glass Length = (Center to Center Dimension) - 2"
- Rod Length = (Glass Length) + 1-1/4"
- Glass rods sold separately
