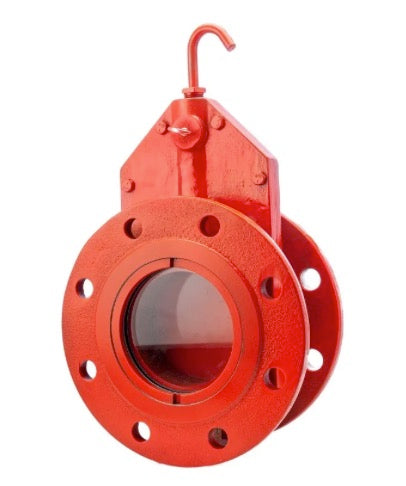

SAF Industrial Viewports provides Blast Gate Valves Flanged, designed to regulate airflow and other materials in various applications. These valves feature a sturdy cast iron body with a precisely machined, self-cleaning stainless steel slide. The slide can be easily adjusted to any position using a choice of operating mechanisms. These Blast Gates are ideal for low-pressure applications where 100% shut-off is not required.

Specifications:

• Sizes: Available in 3" to 12" with a raised face; 14" and 16" with a flat face, matching the American Standard 125 flange pattern.
• Note: 10" units are discontinued and no longer offered.
• Materials: Standard unit made from Class 30 gray iron with a maximum temperature of 425F. Custom units made from carbon steel and stainless steel are available upon request.
• RPM Flange Valves: Also available in 4", 5", and 6" sizes.

• Pipe Size: 4"
• A: 15-1/4" B: 5-3/4" C: 4-1/4" D: 10-3/4" E: 4-1/2" F: 2-1/8" G: 4-1/4" H: 7-1/2" I: 9"
• Bolt Size: 5/8"
• # of Holes on Flange: 8
