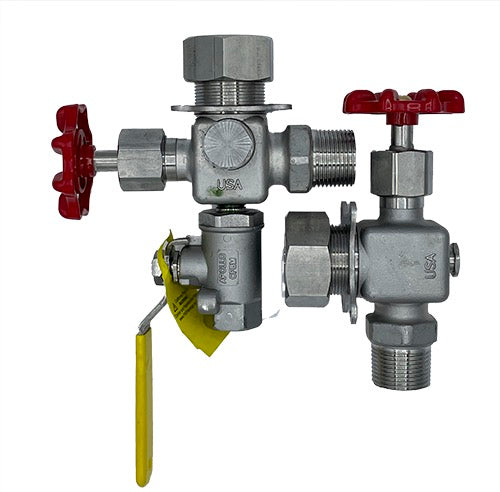

Conbraco 23-450 Series Stainless Steel Liquid Level Gauge

Original price $1,551.86 - Original price $1,567.78
Original price
$1,567.78
$1,551.86 - $1,567.78
Current price $1,567.78
Request a quote
  • Ball Checks: Standard on the 23-450 series to prevent fluid loss if the glass breaks. The 23-400 series does not include ball checks.
  • Versatile Connections: Available with 1/2" and 3/4" NPT male pipe connections.
  • High-Temperature and Pressure Ratings: Rated for 500 psig at 450F (service ratings subject to the pressure/temperature ratings of the gauge glass and gaskets).
  • Additional Features:
    • PTFE reinforced gauge glass gaskets and stem packings.
    • Chemical-resistant PTFE seat.
    • 5/16" diameter full flow all stainless steel drain valve with safety handle.
    • Guard rod bracket to accommodate four stainless steel guard rods for added protection.
  • Glass and Rods: Sold separately.
  • Length Calculation:
    • Glass Length = (Center to Center Dimension) - 2"
    • Rod Length = (Glass Length) + 7/8"
  • Requires four guard rods for proper installation.
