Redline Heavy Wall Gage Glass 3/4" O.D.
How To Order:
Select only the glass cut length and fractional cut length (if needed). The outer diameter (O.D.) is already specified in the product title.
Schott / Duran and Corning Pyrex tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line. Diameters range from 1/2" OD to 3/4" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.
*48" is the maximum length for heavywall glass*

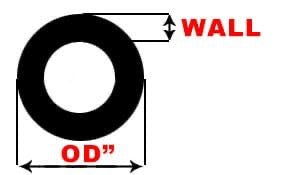

All OD of Glass is (+1/64 , - 3/64") Wall Thickness 7/32" (+ 1/16", -0)
- Please note that dimensions are "OD" and Wall Thickness
- All Custom Cut Lengths are Non-Returnable*
White Box Packaging
To ensure glass protection in transit, a box charge may be added to your order depending on glass length and quantity. To learn more, please visit White Box Packing
