Saf-T-Eye® Port Angular Unit - Model 12 & 16

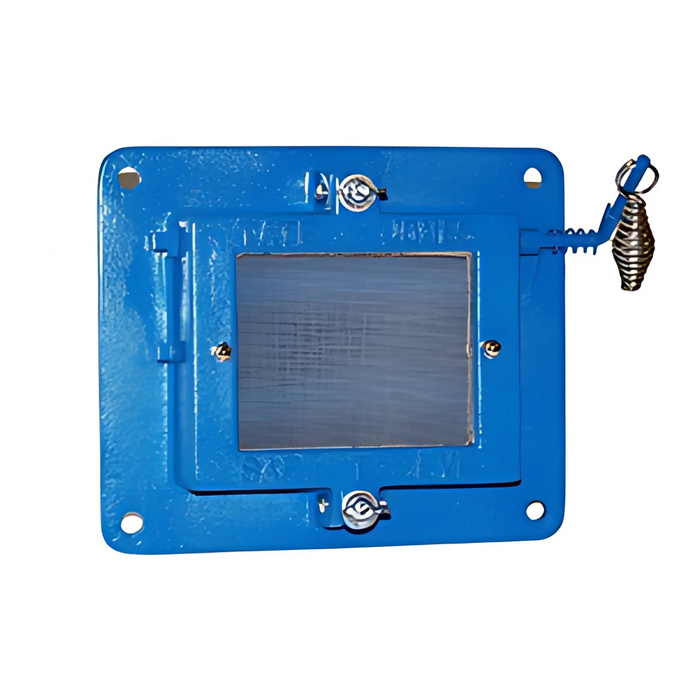

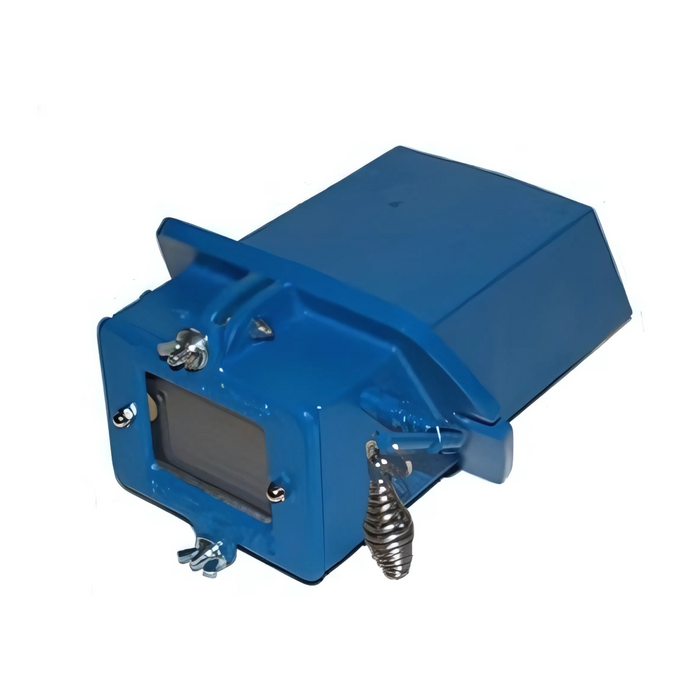

Angular Unit - Model #12 - New Part #23A
The "E" Dimension of these units is cut on a thirty degree angle providing a different viewing aspect inside the vessel. The #12 unit has a viewing area of 2-3/4" by 3-1/2". For a larger angular unit, see Model 16 (Angular).
- Glass: Pyrex or Quartz
- PSI Rating: 5

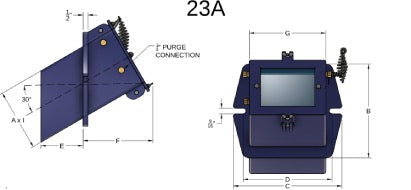

- A: 4-1/2" B: 7-1/2" C: 9-1/2" D: 7-3/4" E: 6-1/4" F: 6-1/2" G: 6" I: 6"
- Viewing Area: 4-1/2" x 5-1/2"
- Material: Cast Iron, Carbon Steel, Stainless Steel

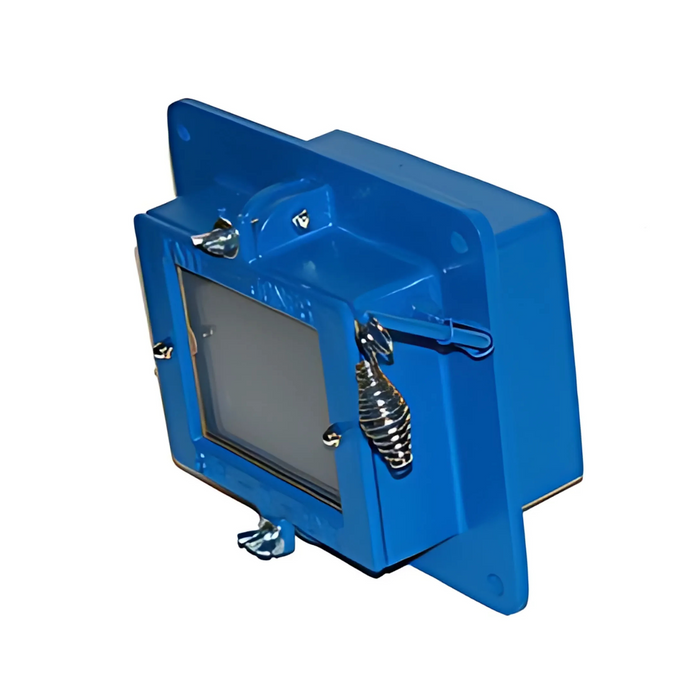

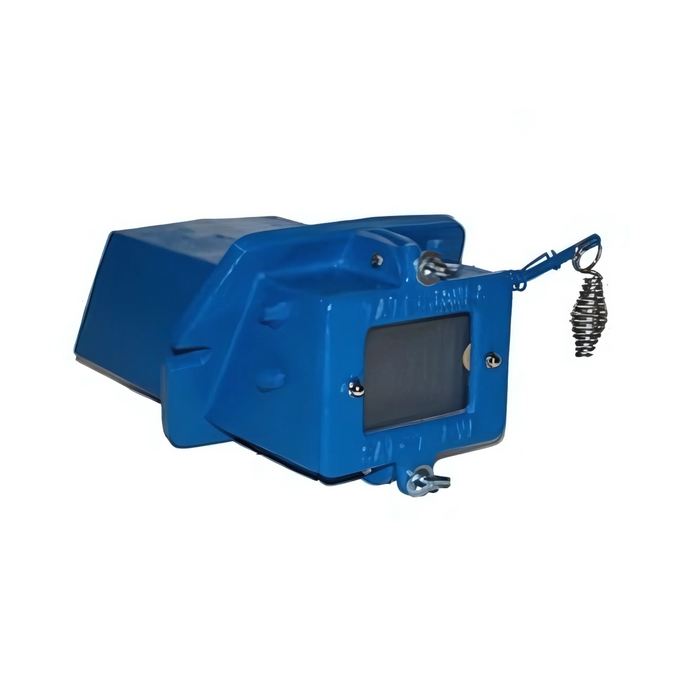

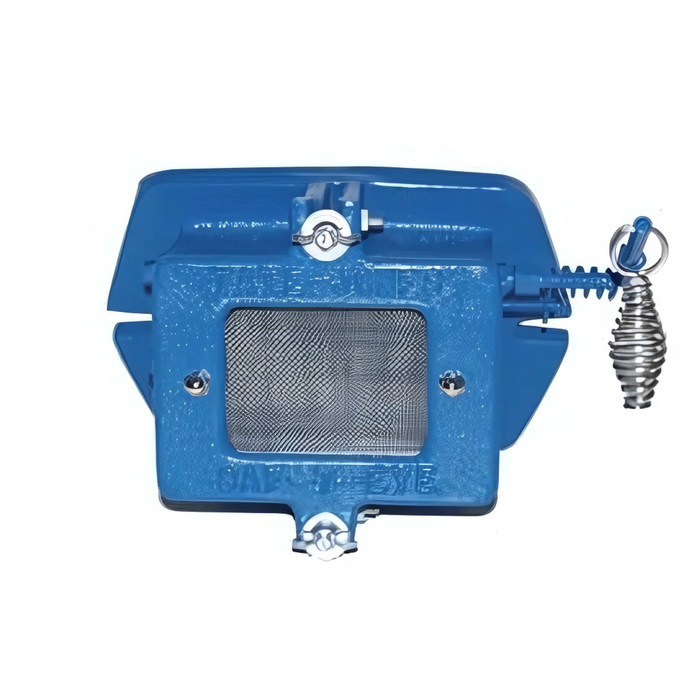

Angular Unit - Model #16 - New Part #45A
The "E" dimension of this unit is cut on a thirty degree angle providing a different viewing aspect inside the vessel with a larger viewing window than the Model No. 12 unit. It is available from stock in carbon steel.
*E-dimension inside the fixture can be extended up to 20".
- Glass: Pyrex or Quartz
- PSI Rating: 5
- A: 6-3/8" B: 9-1/2" C: 9-1/2" E: 3-1/2" F: 8" G: 9-3/8" H: 8" I: 7-7/8"
- Viewing Area: 4-1/2 x 5-1/2"
- Material: Cast Iron, Carbon Steel, Stainless Steel
The operating environment and heat should be considered when ordering type of steel and glass.
